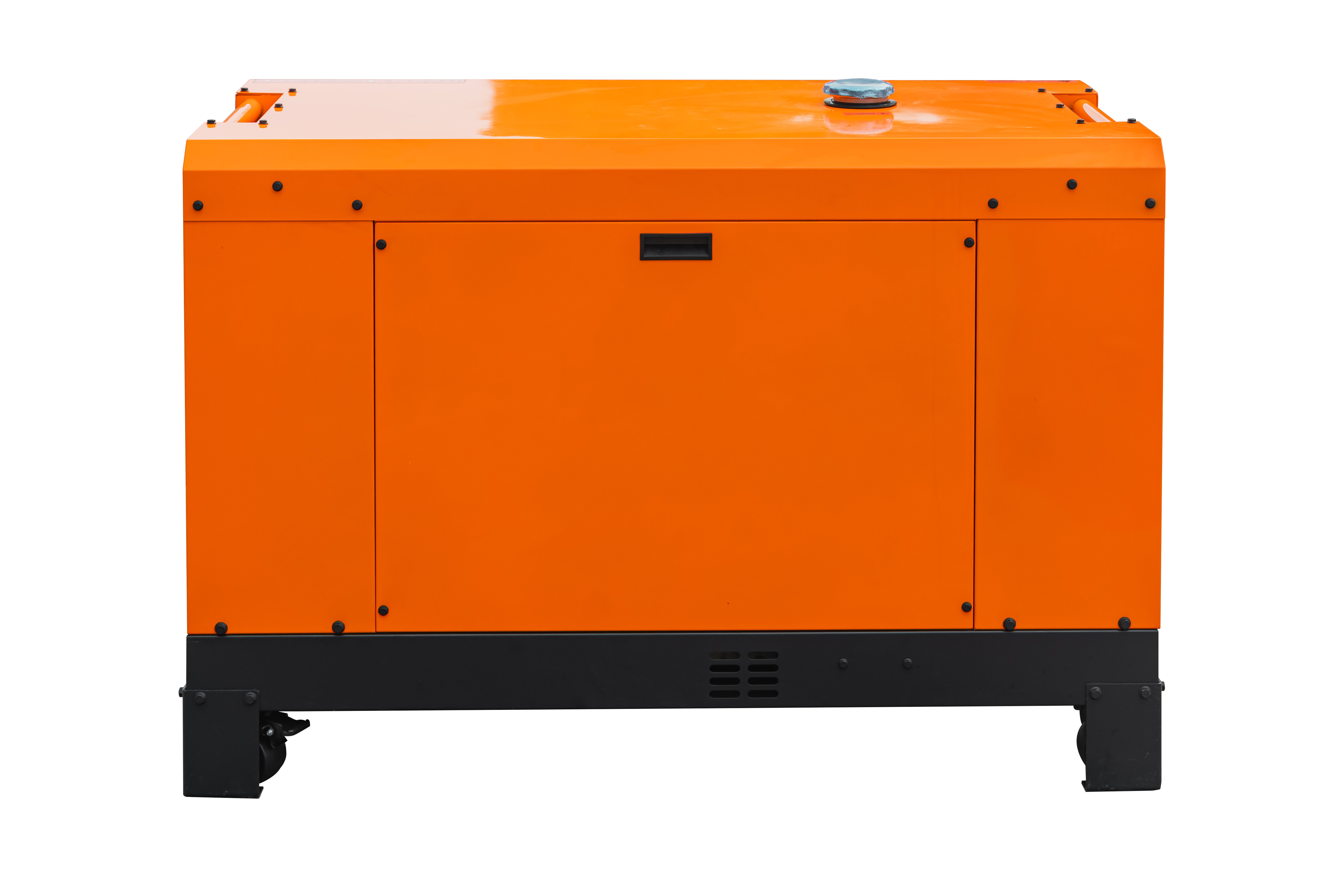

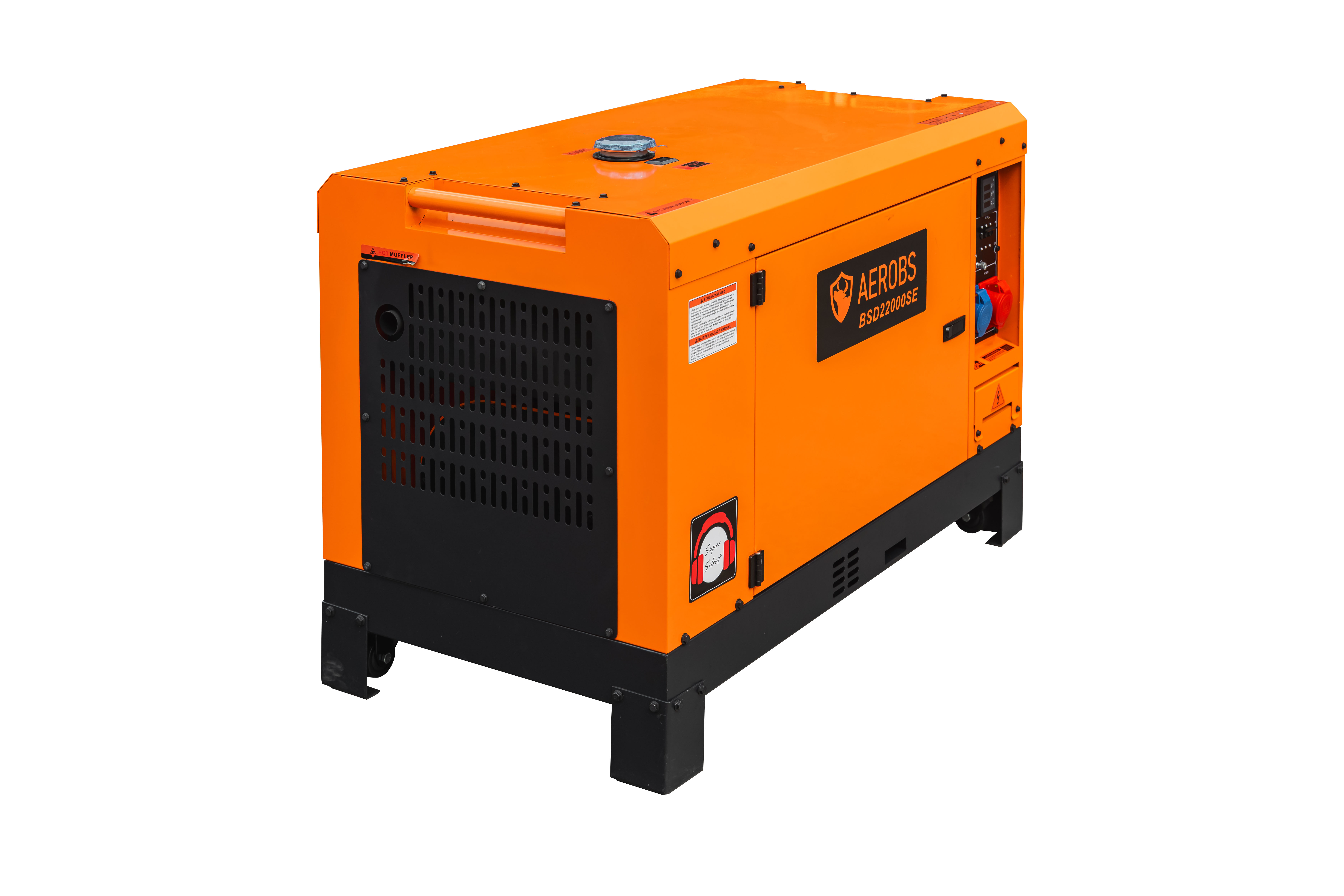

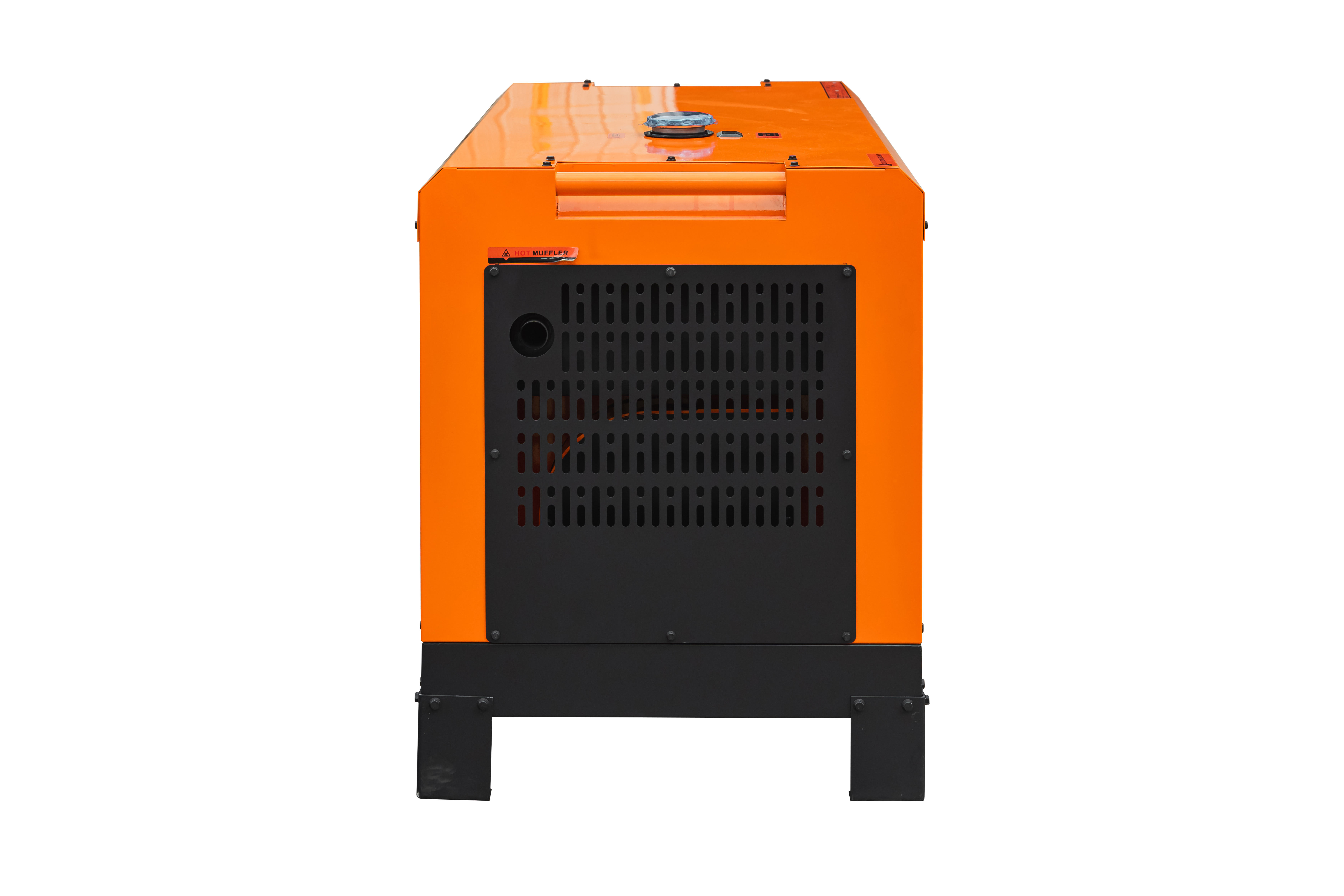

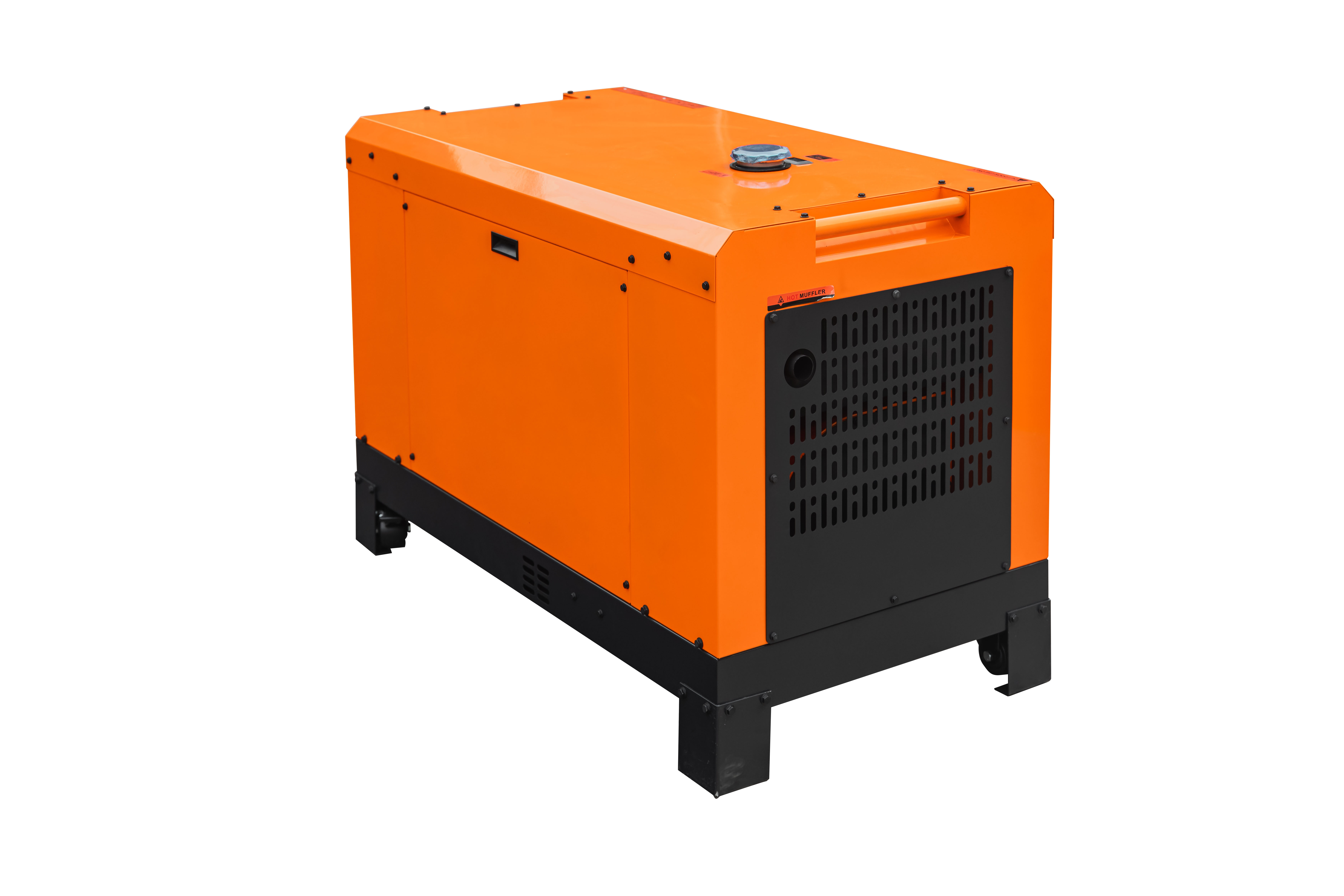

BSD8500SE/BSD9500SE/BSD10000SE
AEROBS
| Model | BSD8500SE | BSD9500SE | BSD10000SE |
| Engine Model | BS192FE | BS195FE | BS1100FE |
| Bore × stroke (mm) | 92×75 | 95×75 | 100×85 |
| Displacement (cc) | 499 | 532 | 668 |
| Rated Frequency (Hz) | 50 | 50 | 50 |
| Rated Voltage (V) | 230/380 | 230/380 | 230/380 |
| Rated Power (kw) | 6 | 7 | 8 |
| Max.Power (kw) | 6.5 | 7.5 | 8.5 |
| Compression Ratio | 19.5:1 | 19.5:1 | 19.5:1 |
| Starting System | Electric Start | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 15 | 15 | 15 |
| Gross Weight (kg) | 180 | 190 | 200 |
| Dimensions (L×W×H) (mm) | 980×550×760 | 980×550×760 | 1010×580×820 |
| Quantity(20GP/40HQ) | 72/144 | 72/136 | 60/130 |
