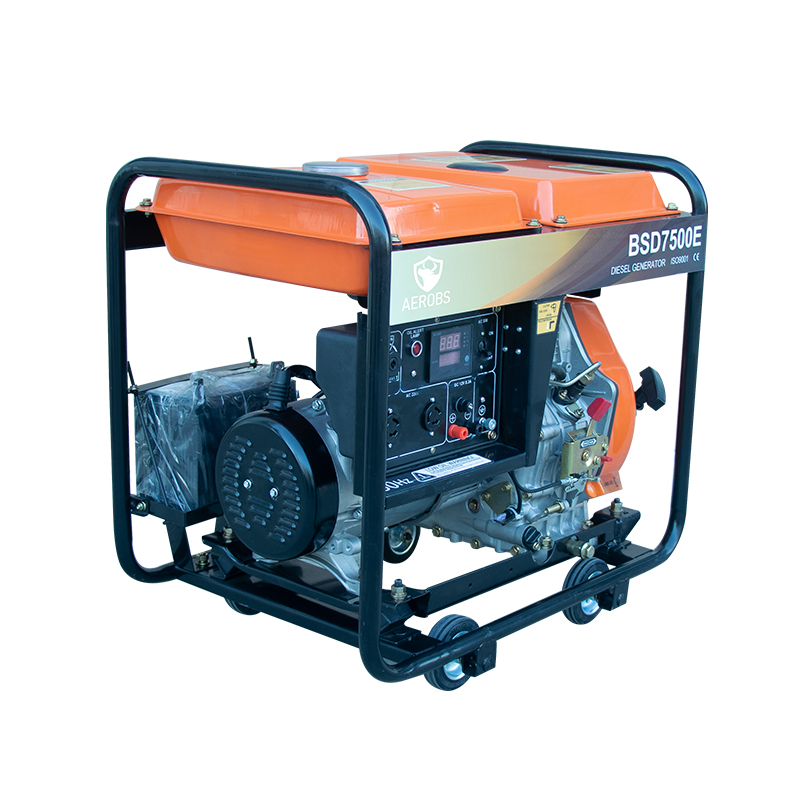

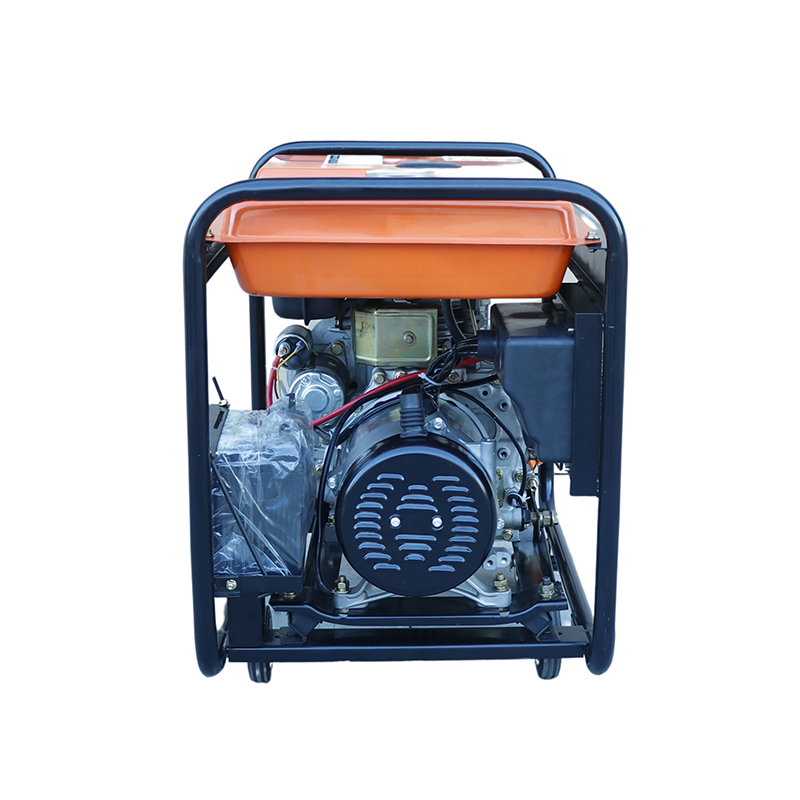

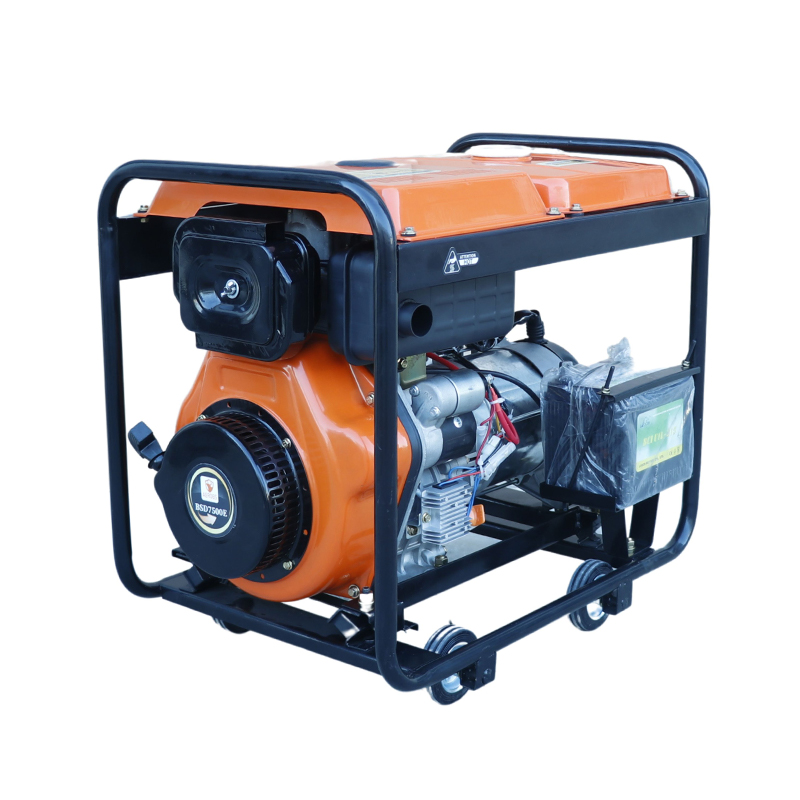

BSD2500X(E)/BSD3500X(E)/BSD6500XE/BSD7500XE/BSD8500XE
AEROBS
| Model | BSD2500X(E) | BSD3500X(E) | BSD6500XE | BSD7500XE | BSD8500XE |
| Engine Model | BS170F | BS178F | BS186FAE | BS188FE | BS192FE |
| Bore × Stroke (mm) | 70×55 | 78×62 | 86×72 | 88×75 | 92×75 |
| Displacement (cc) | 211 | 296 | 418 | 456 | 499 |
| Rated Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Rated Voltage (V) | 230 | 230 | 230 | 230 | 230 |
| Rated Power (kw) | 2 | 2.8 | 4.5 | 5 | 6 |
| Max.Power (kw) | 2.2 | 3.2 | 5 | 5.5 | 6.5 |
| Compression Ratio | 20:01 | 20:01 | 19.5:1 | 19.5:1 | 19.5:1 |
| Starting System | Recoil Start / Electric Start | Recoil Start / Electric Start | Electric Start | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 12.5 | 12.5 | 15 | 15 | 15 |
| N.W/G.W (kg) | 64/66 | 80/83 | 95/100 | 100/105 | 105/110 |
| Dimensions (L×W×H) (mm) | 640×480×530 | 655×480×530 | 720×492×655 | 720×492×655 | 720×492×655 |
| Quantity(20GP/40HQ) | 160/392 | 160/392 | 126/235 | 126/227 | 126/220 |
