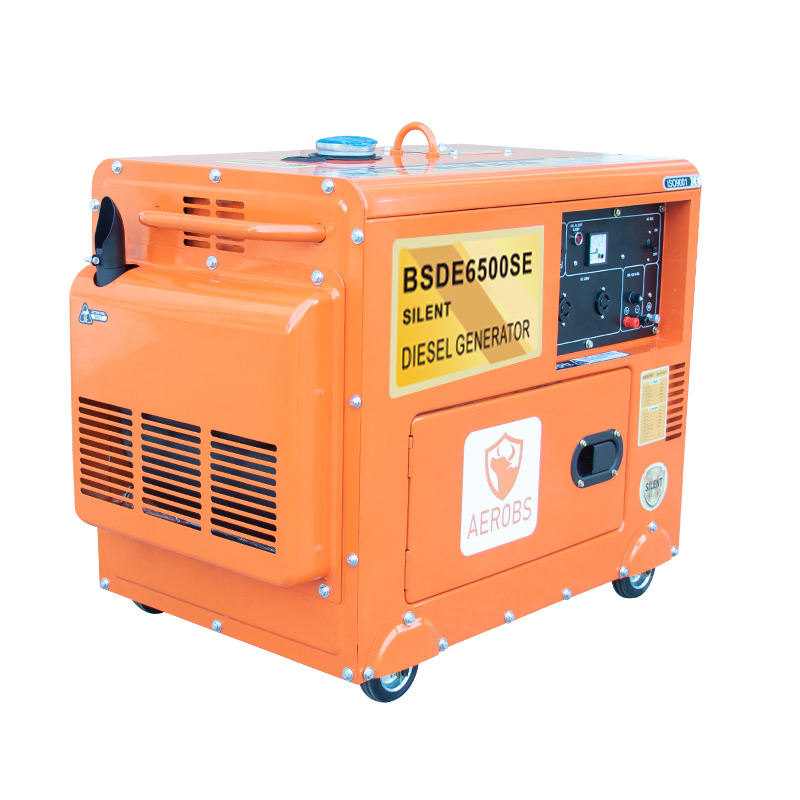

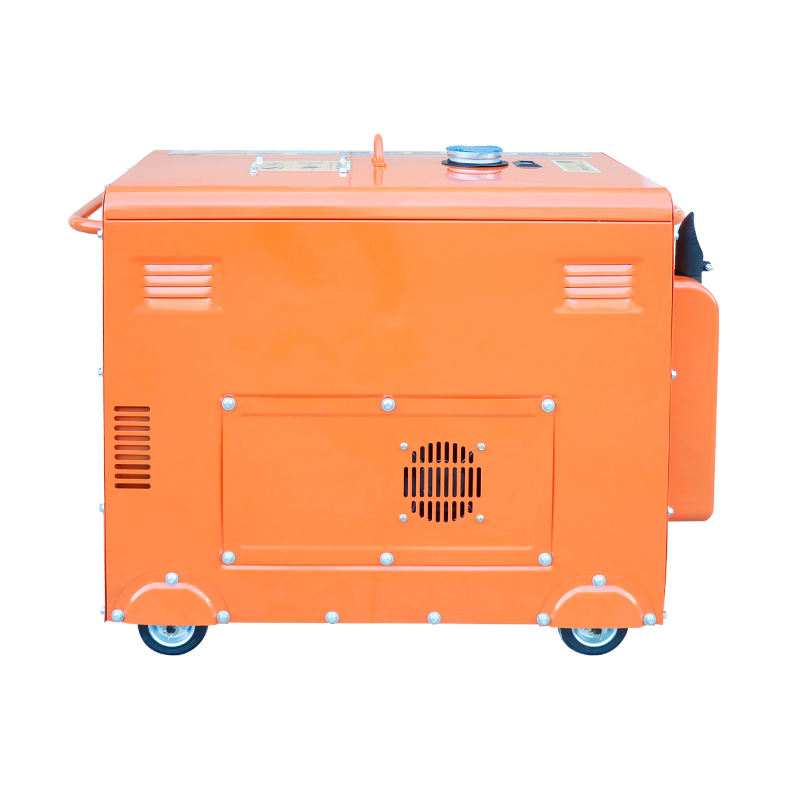

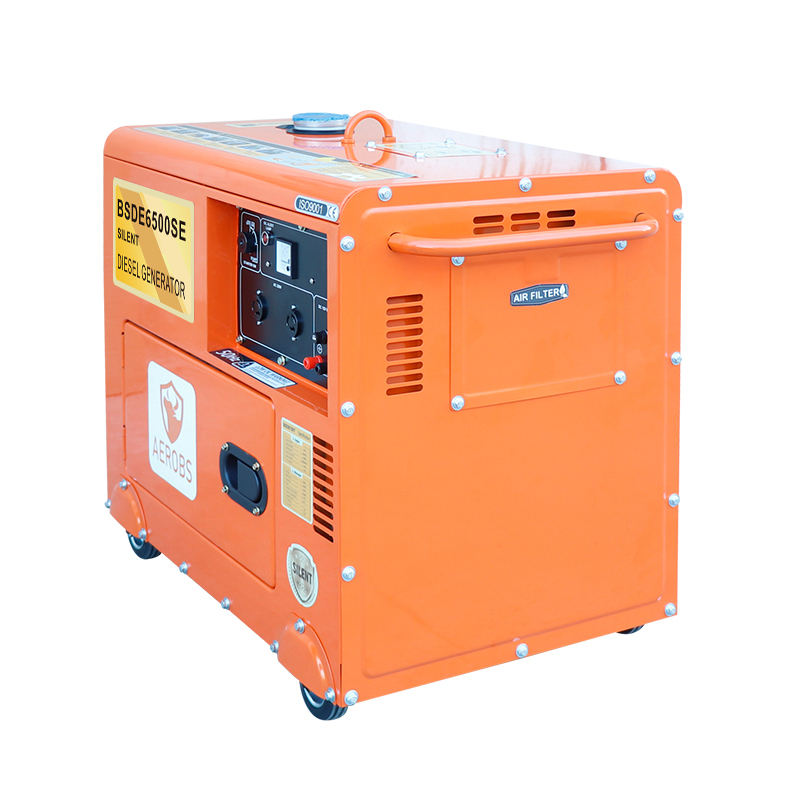

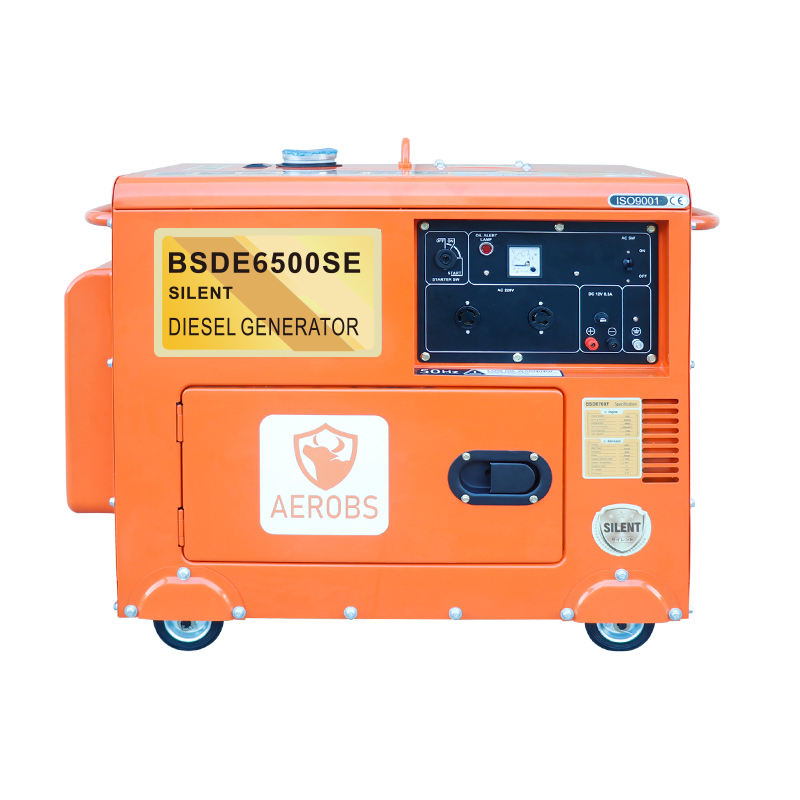

BSD6500SE/BSD7500SE
AEROBS
| Model | BSD6500SE | BSD7500SE |
| Engine Model | BS186FAE | BS188FE |
| Bore × stroke (mm) | 86×72 | 88×75 |
| Displacement (cc) | 418 | 456 |
| Rated Frequency (Hz) | 50 | 50 |
| Rated Voltage (V) | 230/380 | 230/380 |
| Rated Power (kw) | 4.5 | 5 |
| Max.Power (kw) | 5 | 5.5 |
| Compression Ratio | 19.5:1 | 19.5:1 |
| Starting System | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 15 | 15 |
| Gross Weight (kg) | 160 | 170 |
| Dimensions (L×W×H) (mm) | 980×550×760 | 980×550×760 |
| Quantity(20GP/40HQ) | 72/162 | 72/152 |
