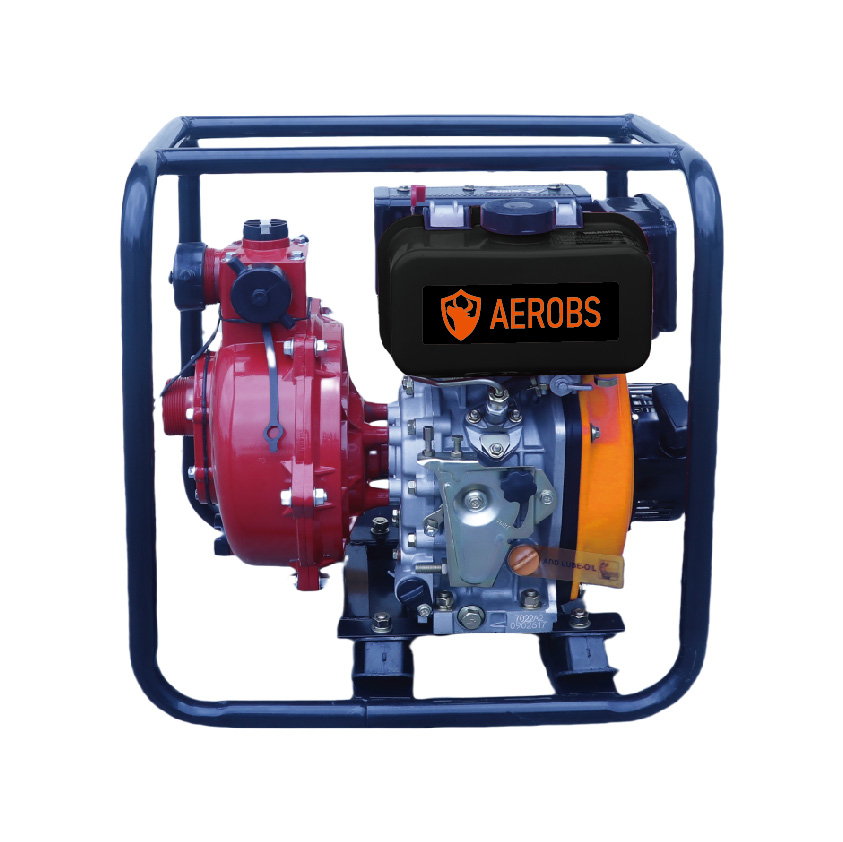

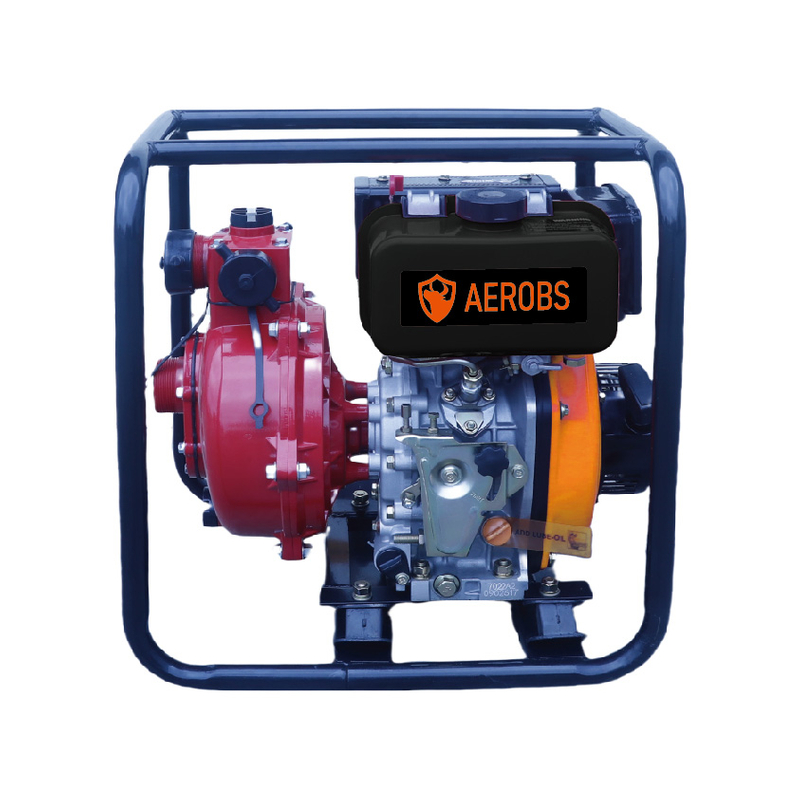

BSWP15DH/BSWP20DH/BSWP30DH
AEROBS
| Model | BSWP15DH | BSWP20DH | BSWP30DH |
| Engine Model | BS178F | BS186FA | BS192F |
| Inlet/Outlet Dia (in/mm) | 1.5”(40) | 2”(50) | 3”(80) |
| Volume (m³/h) | 12 | 16 | 39 |
| Suction (m) | 8 | 8 | 8 |
| Lift (m) | 70 | 70 | 78 |
| Rated Power (kw/rpm) | 4/3600 | 6.3/3600 | 8.2/3600 |
| Displacement (cc) | 296 | 418 | 498 |
| Fuel Tank Capacity (L) | 3.5 | 5.5 | 5.5 |
| Dimensions (L*W*H) (mm) | 505×420×545 | 570×490×570 | 660×475×630 |
| N.W/G.W (kg) | 46/47 | 68/69 | 78/80 |
| Quantity(20GP/40HQ) | 248/504 | 192/384 | 126/344 |
