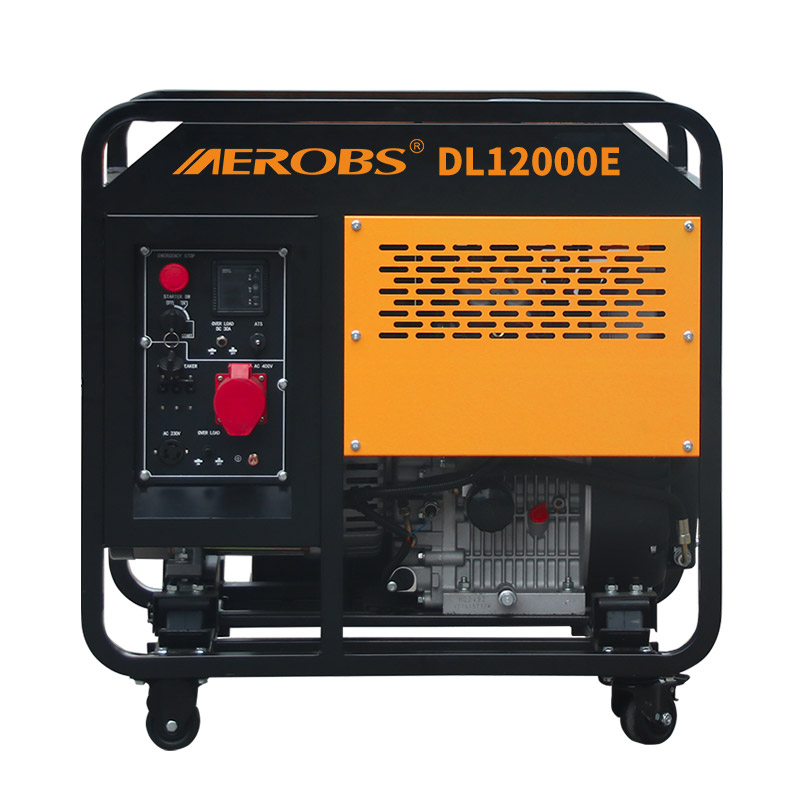

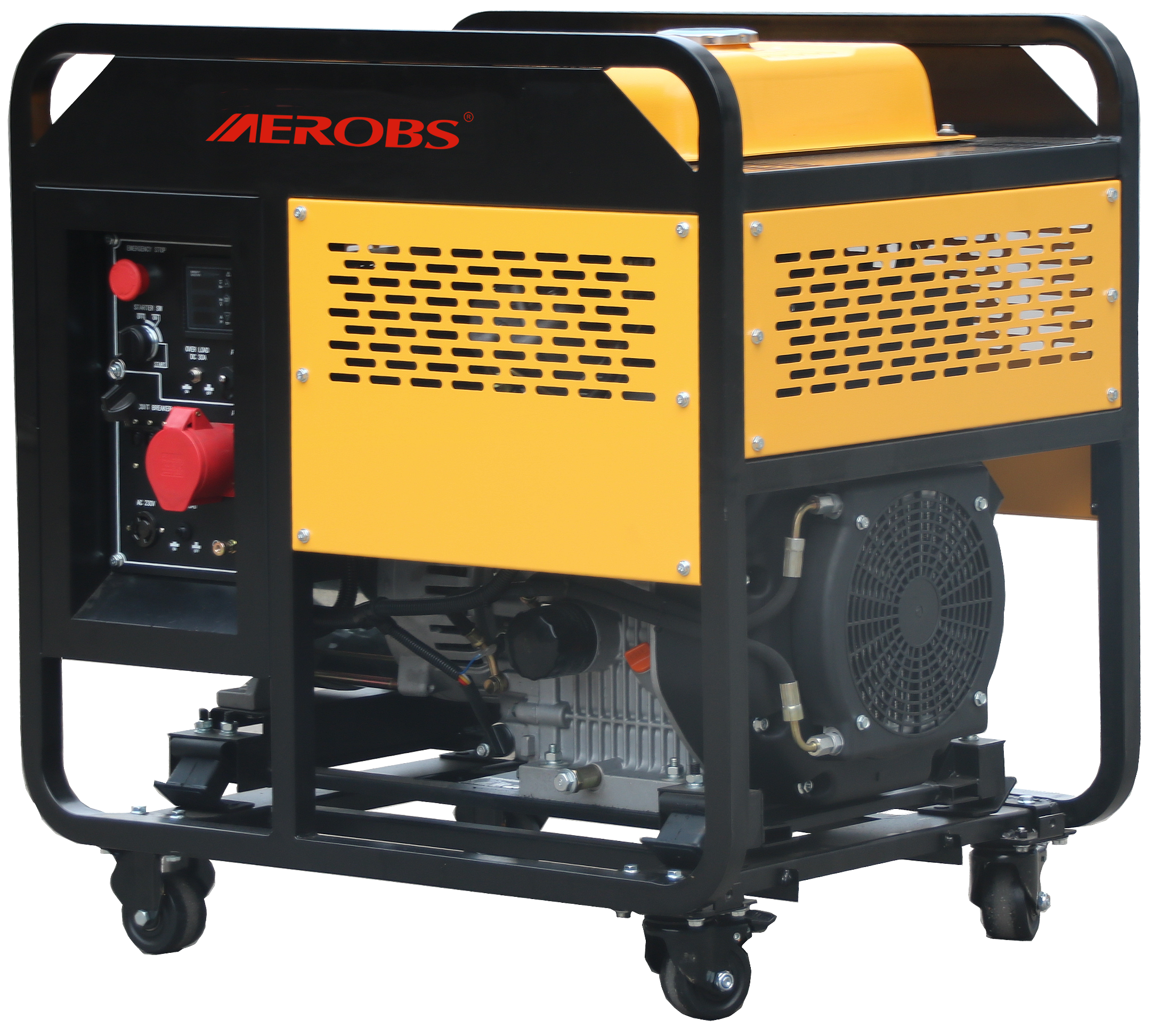

BSD12000XE/BSD15000XE/BSD18000XE/BSD20000XE/BSD22000XE
AEROBS
| Model | BSD12000XE | BSD15000XE | BSD18000XE | BSD20000XE | BSD22000XE |
| Engine Model | BS2V88FE | BS2V92FE | BS2V95FE | BS2V100FE | BS2V105FE |
| Bore × Stroke (mm) | 88×75 | 92×75 | 95×88 | 100×88 | 105×88 |
| Displacement (cc) | 912 | 997 | 1247 | 1382 | 1523 |
| Rated Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Rated Voltage (V) | 230 | 230 | 230 | 230 | 230 |
| Rated Power (kw) | 10 | 12 | 15 | 18 | 20 |
| Max.Power (kw) | 11 | 13 | 16 | 20 | 22 |
| Starting System | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 25 | 25 | 25 | 25 | 25 |
| Gross Weight (kg) | 225 | 225 | 225 | 225 | 225 |
| Dimensions (L×W×H) (mm) | 900×670×880 | 900×670×880 | 960×660×850 | 960×660×850 | 960×660×850 |
| Quantity(20GP/40HQ) | 45/115 | 45/115 | 54/115 | 54/115 | 54/115 |
| Model | BSD12000XE | BSD15000XE | BSD18000XE | BSD20000XE | BSD22000XE |
| Engine Model | BS2V88FE | BS2V92FE | BS2V95FE | BS2V100FE | BS2V105FE |
| Bore × Stroke (mm) | 88×75 | 92×75 | 95×88 | 100×88 | 105×88 |
| Displacement (cc) | 912 | 997 | 1247 | 1382 | 1523 |
| Rated Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Rated Voltage (V) | 230 | 230 | 230 | 230 | 230 |
| Rated Power (kw) | 10 | 12 | 15 | 18 | 20 |
| Max.Power (kw) | 11 | 13 | 16 | 20 | 22 |
| Starting System | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 25 | 25 | 25 | 25 | 25 |
| Gross Weight (kg) | 225 | 225 | 225 | 225 | 225 |
| Dimensions (L×W×H) (mm) | 900×670×880 | 900×670×880 | 960×660×850 | 960×660×850 | 960×660×850 |
| Quantity(20GP/40HQ) | 45/115 | 45/115 | 54/115 | 54/115 | 54/115 |
