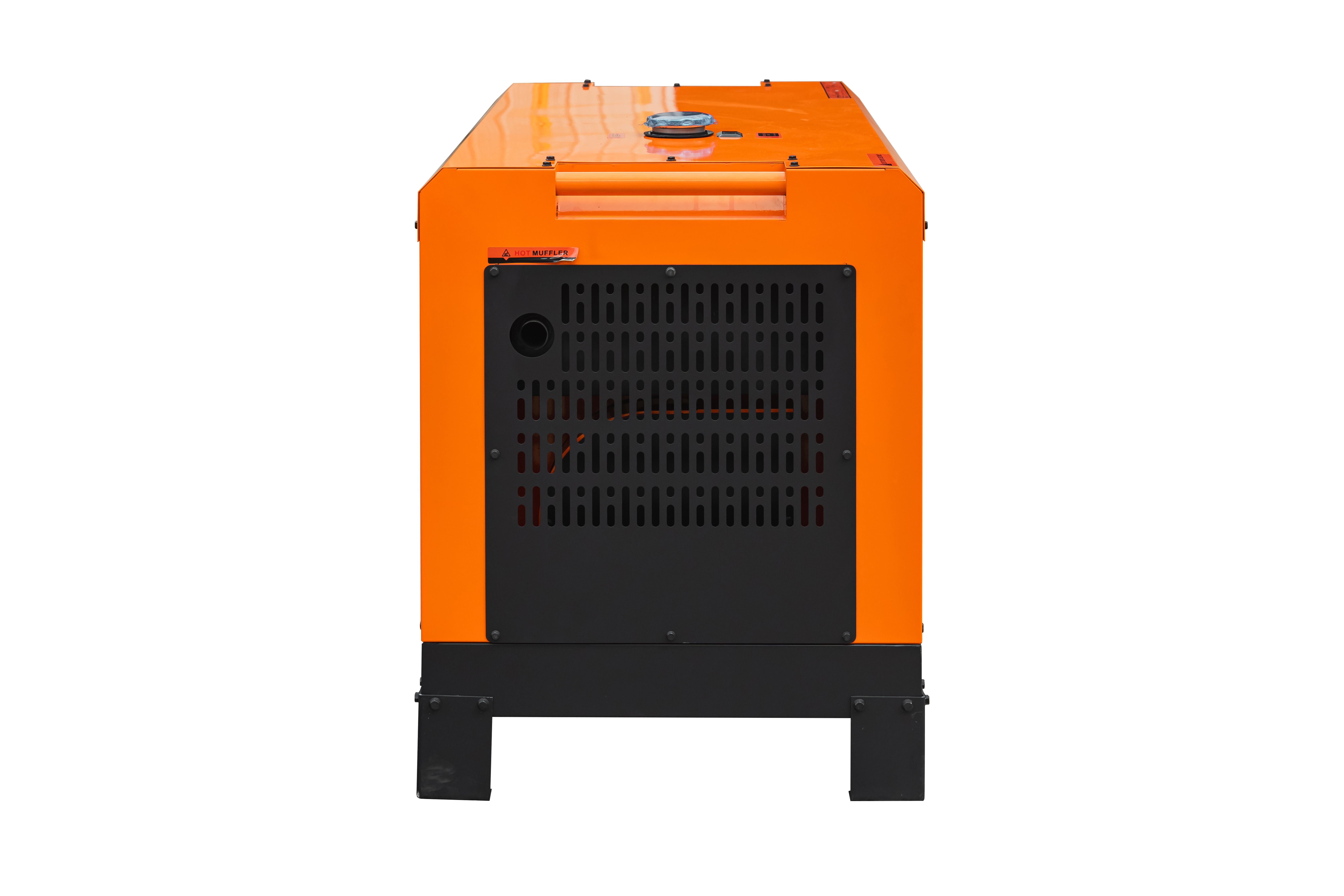

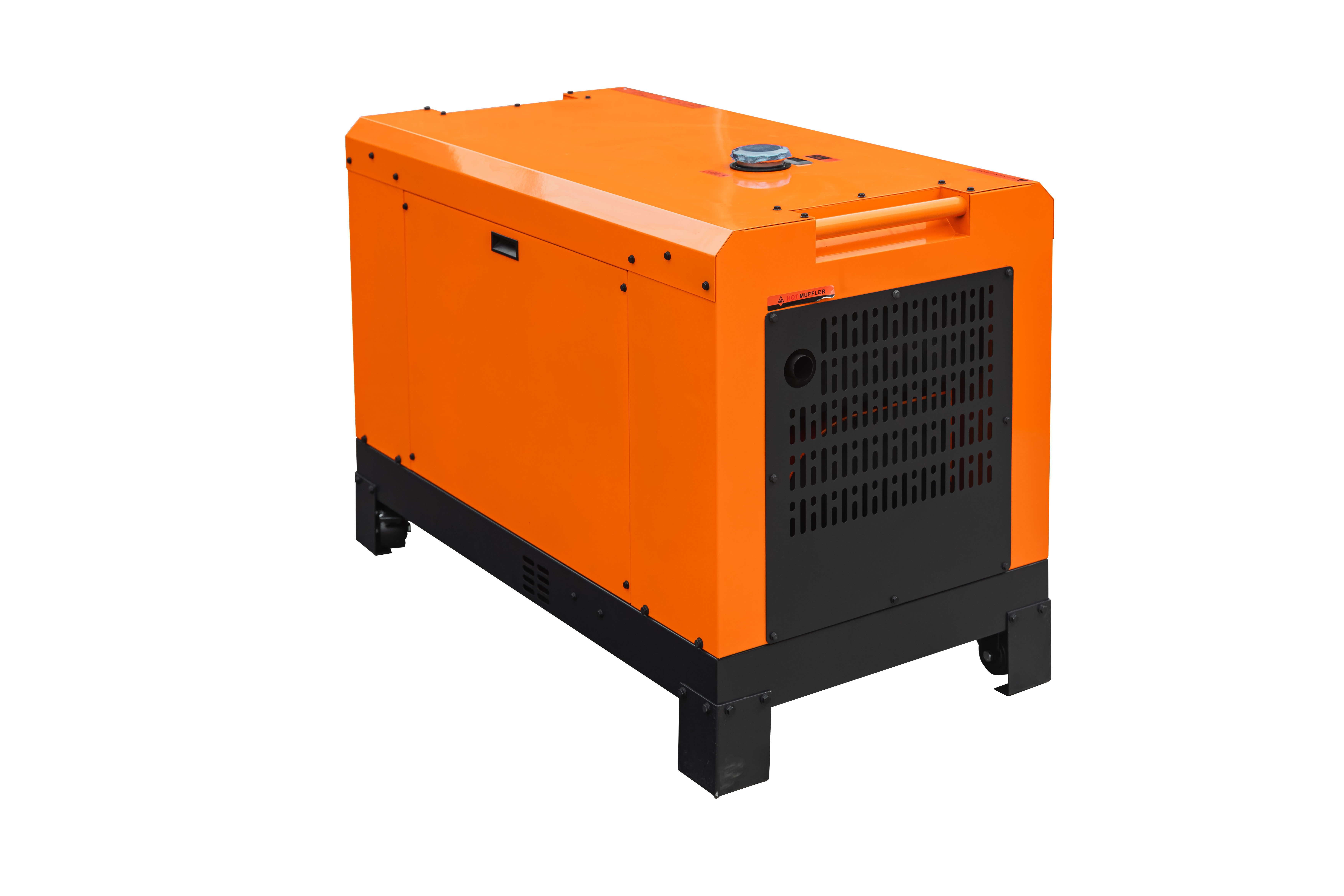

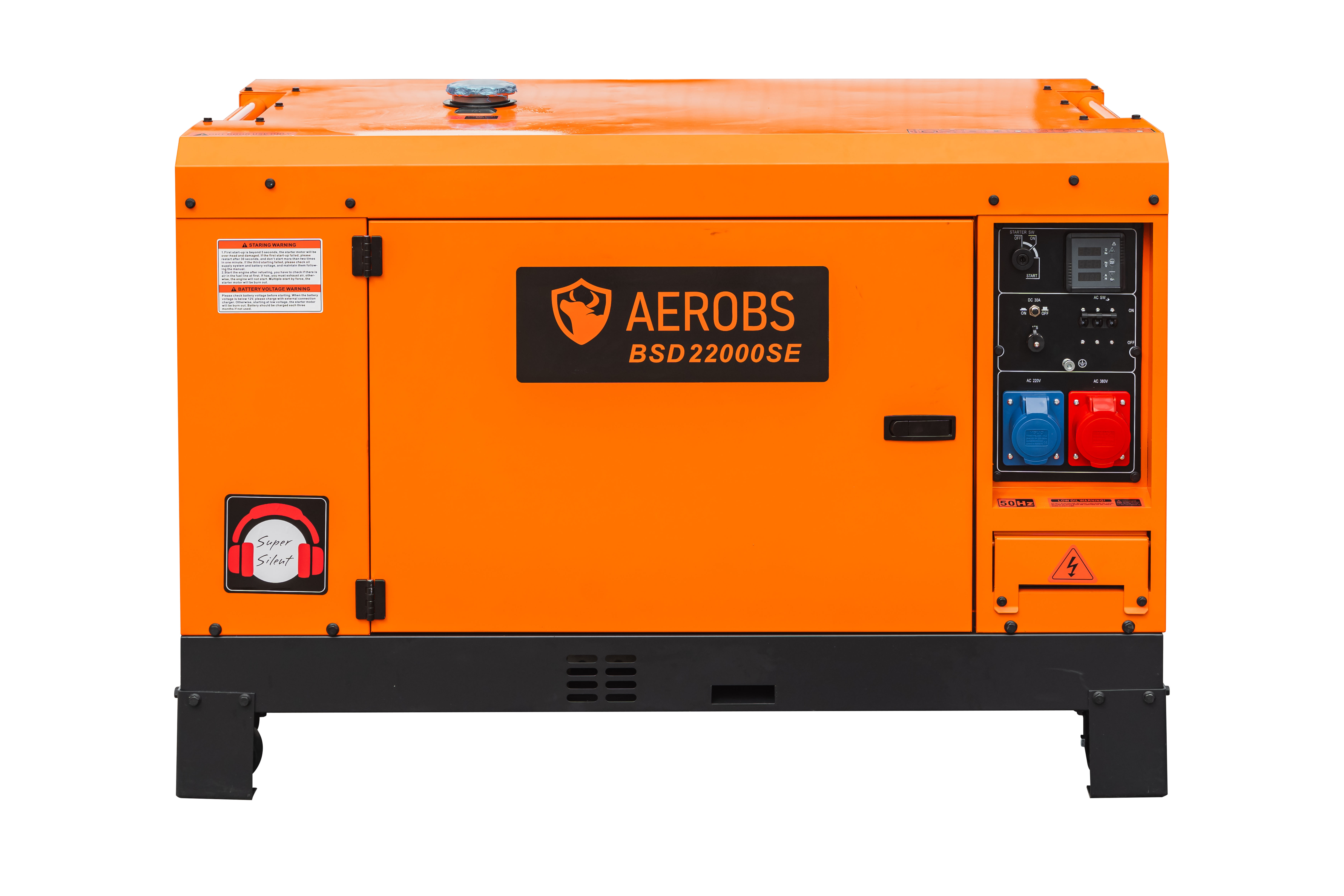

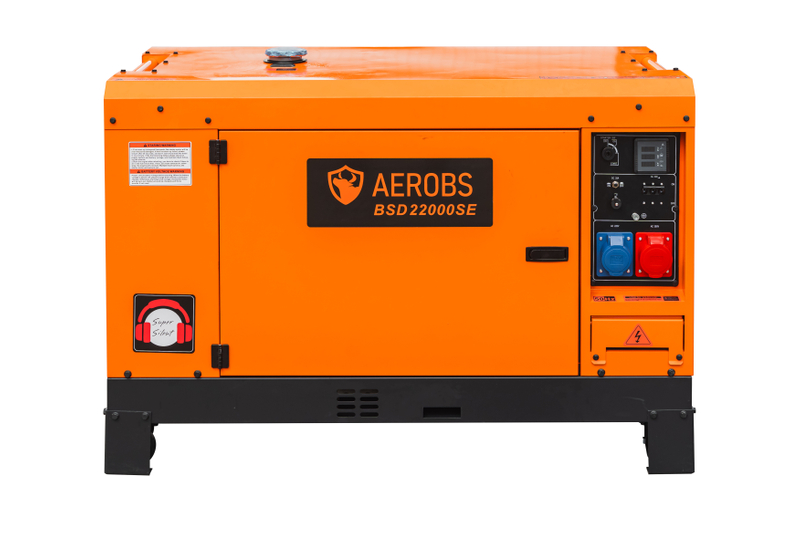

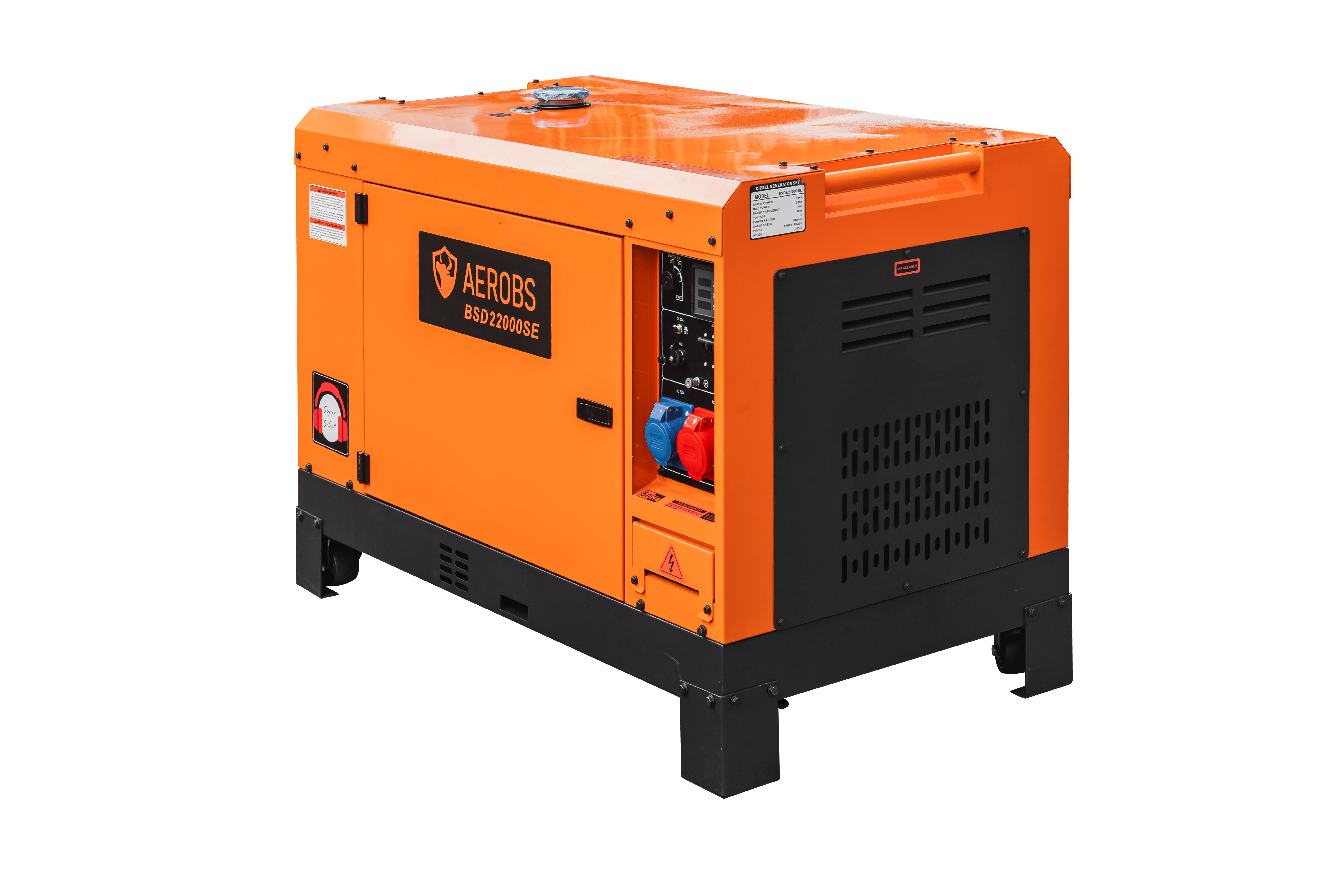

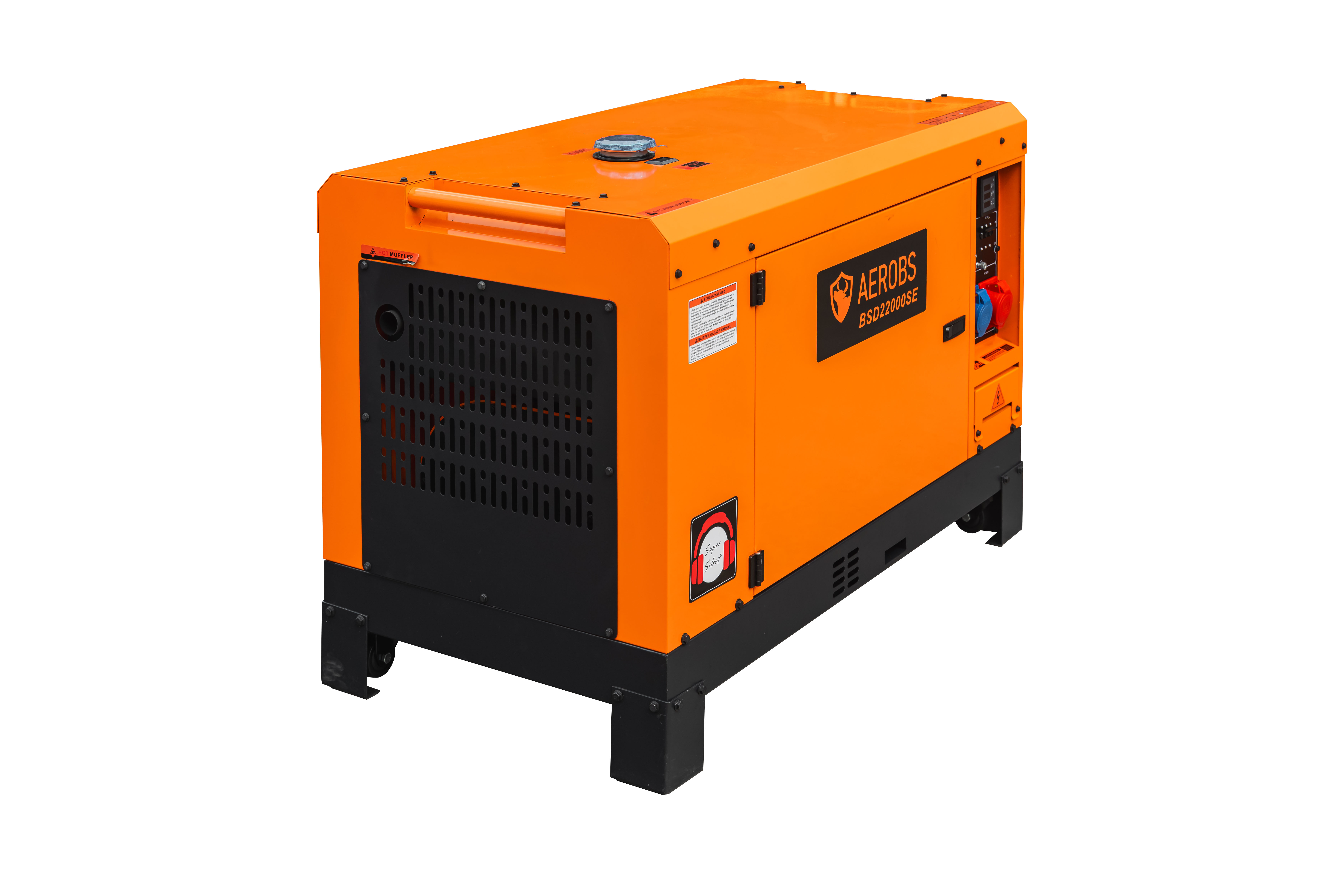

BSD12000SE/BSD15000SE/BSD18000SE/BSD20000SE/BSD22000SE
AEROBS
| Model | BSD12000SE | BSD15000SE | BSD18000SE | BSD20000SE | BSD22000SE |
| Engine Model | BS2V88F | BS2V92F | BS2V95F | BS2V100F | BS2V105F |
| Bore × Stroke (mm) | 88×75 | 92×75 | 95×88 | 100×88 | 105×88 |
| Displacement (cc) | 912 | 997 | 997 | 1382 | 1523 |
| Rated Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Rated Voltage (V) | 230 | 230 | 230 | 230 | 230 |
| Rated Power (kw) | 10 | 12 | 15 | 16 | 18 |
| Max.Power (kw) | 11 | 13 | 16 | 17 | 20 |
| Compression Ratio | 20:01 | 20:01 | 20:01 | 20:01 | 20:01 |
| Starting System | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 25 | 25 | 25 | 25 | 25 |
| Noise Level(7m)dB(A) | 74 | 74 | 74 | 74 | 74 |
| Gross Weight (kg) | 260 | 285 | 310 | 325 | 335 |
| Dimensions (L×W×H) (mm) | 1200×670×875 | 1200×670×875 | 1200×670×875 | 1200×670×875 | 1200×670×875 |
| Quantity(20GP/40HQ) | 35/96 | 35/91 | 35/83 | 35/80 | 35/77 |
